GRIFFIN 80 TON VERTICAL TRIM PRESS & SHUTTLE

GRIFFIN 80 TON VERTICAL TRIM PRESS & SHUTTLE

Contact us for price

Stow, OH

orCall 4405191745

Description

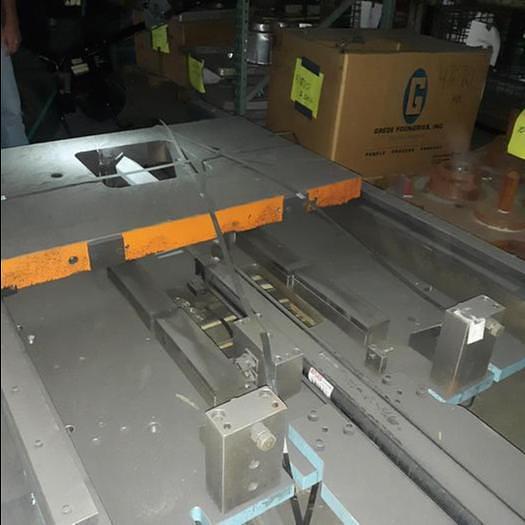

Griffin Vertical Trim Press, 80 Ton Capacity, with Shuttle Table

Specs

- Main Cylinder: HUNGER 210mm Bore x 1193mm stroke

·        Knock-out Cylinder: ATLAS 4.00” Bore x 8.00” stroke # H-040-ME5-0250-5-BE-S-PH-8.00

·        Hydraulic Oil: Penzoil IOS46 or equivalent

·        Hydraulic Pump Motor: Techtop # GR3-C1-TF-364TC-6-BR-D-40 (40 hp @1180 rpm)

·        Hydraulic Pump: Metaris # 4525V60A-001BB21 (serial # 228547-2)

·        Hydraulic Pressure set at 2500 PSI.

·        Counterbalance set at: (Left hand screw) Screw all the way in, back out ½ turn.

·        Return Filter: UFI Hydraulic Division # ERF24NFC (Housing model # FRF24N12BNFC30F)

·        Air Supply: 80 psi Min. clean, dry air.

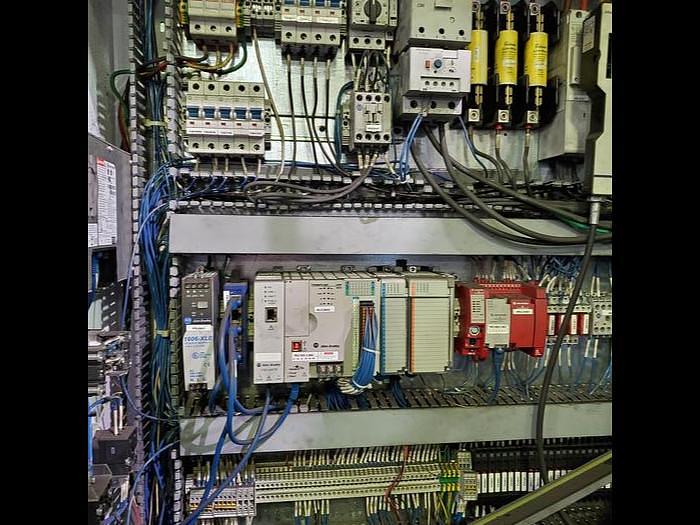

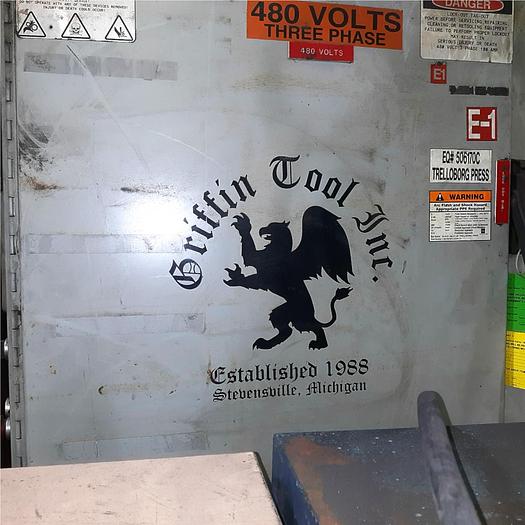

·        Electrical requirements: 480 Volt/3 Phase/60 Hz  100 amp service

Specifications

ManufacturerGRIFFIN TOOL
ModelVERTICAL PRESS & SHUTTLE
Year2016
ConditionUsed
Stock NumberMT127
