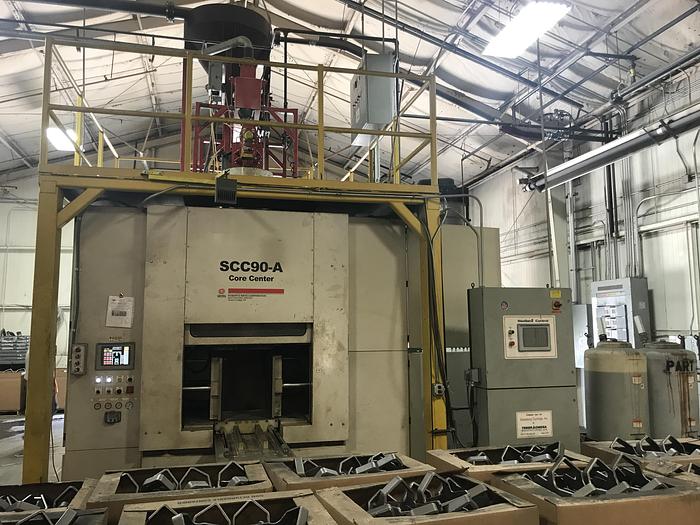

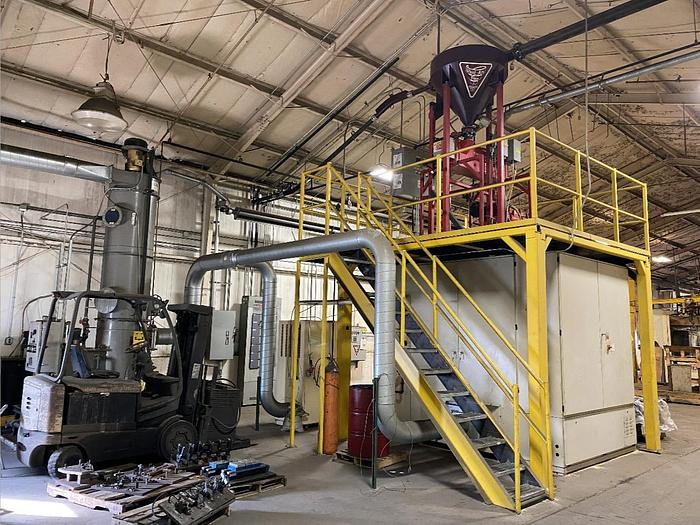

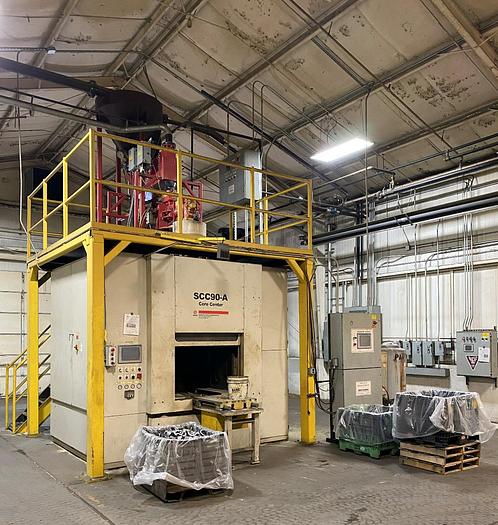

ROBERT SINTO CORP SCC90 COLD BOX CORE CENTER

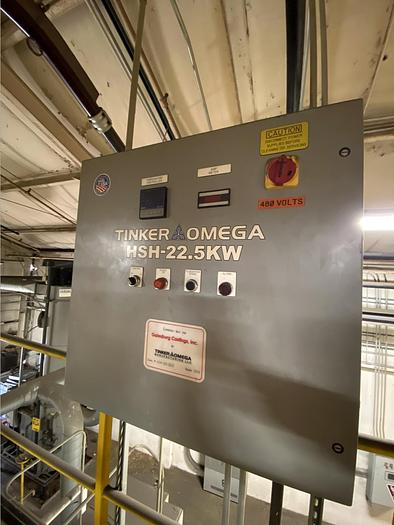

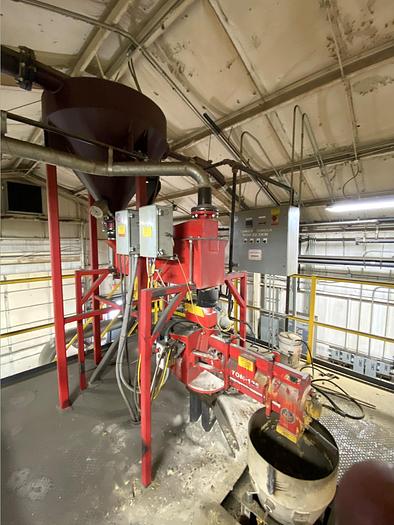

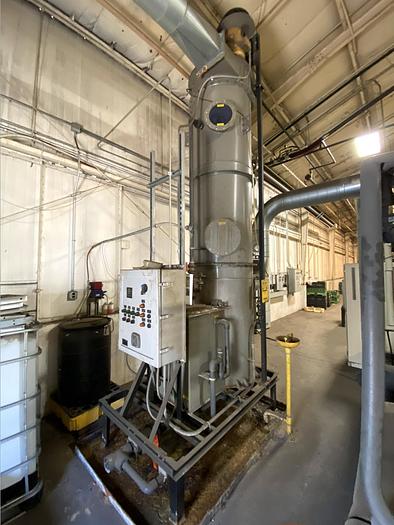

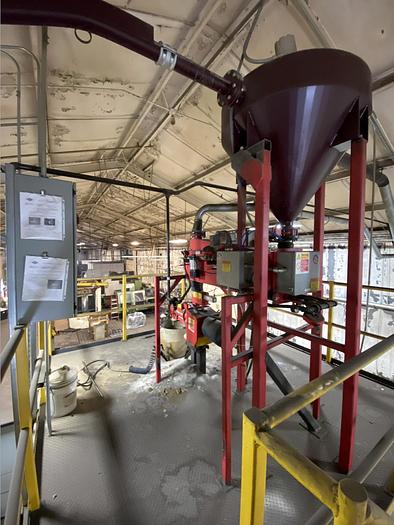

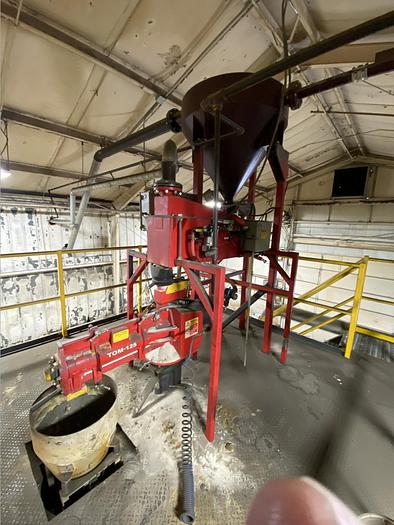

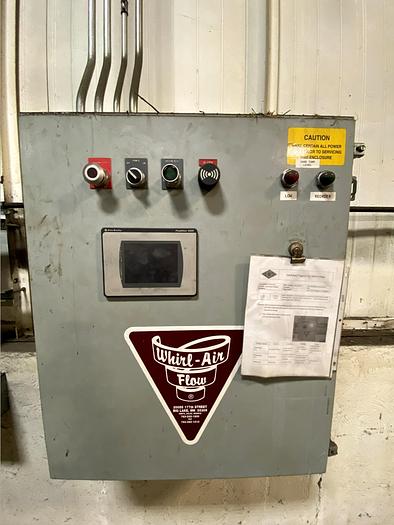

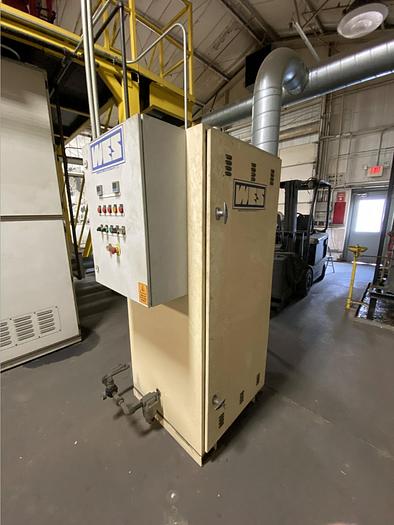

Robert Sinto Corp, SCC90- ACORE CENTER, FCM-0064-00, TINKER High Speed Mixer with Electric Sand Heater, Imet Pro Dual, Core Machine Scrubber Model FP305-32, S/N1636, WES Gas Generator, Whirl Air Feed Capacity: Single Blow – 90 pounds – Core or Mold Double Blow – 130 pounds – Core or Mold VERTICAL HORIZONTAL CORE BOX MOUNTING AREA (inches) 23 ¼” Hi x 27” Deep 24” Hi x 27” Deep MAXIMUM WIDTH OF CORE BOX 18" (9”/9”) 27" MAXIMUM DEPTH OF CORE BOX 27" 27" MAXIMUM WEIGHT OF CORE BOX 440 LBS. – Total(Vacuum)1650 LBS. - Total 1650 LBS. – Total (Bolted) MAXIMUM CORE BOX HEIGHT 24" 30.625” Daylight MAXIMUM OPENING OF PLATENS 45" N/A MINIMUM OPENING OF PLATENS 8" N/A MAXIMUM BLOW AREA 16” x 25” 22” x 25” TRAVEL OF MANDREL TABLE 39" 39" SAND HOPPER CAPACITY 180 LBS. 180 LBS. DRY CYCLE TIME, LESS THAN 25 SECONDS 25 SECONDS
