GRIEVE HB-500 ELECTRIC HEAT TREAT FURNACE

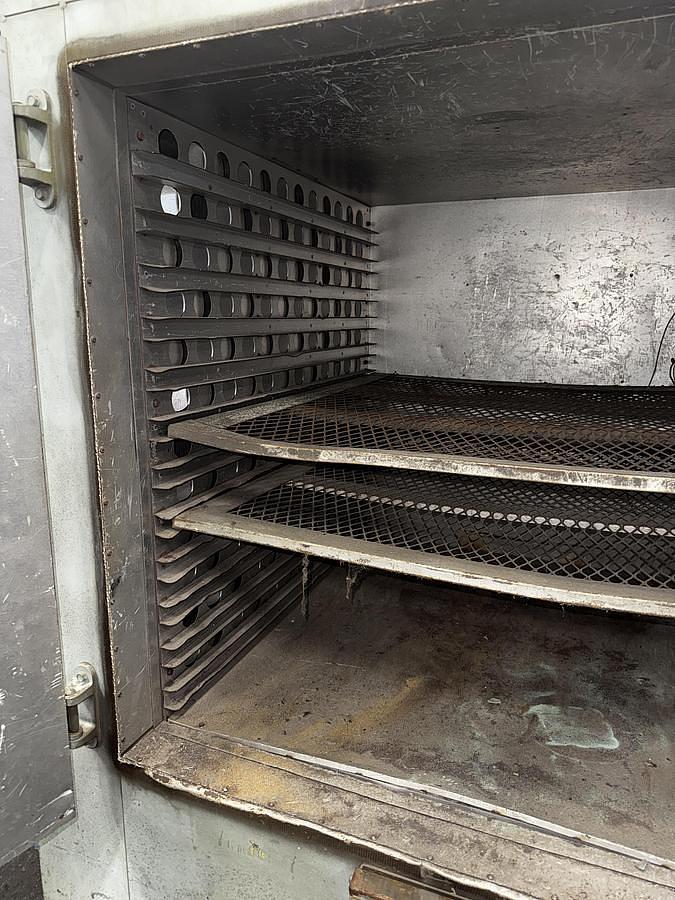

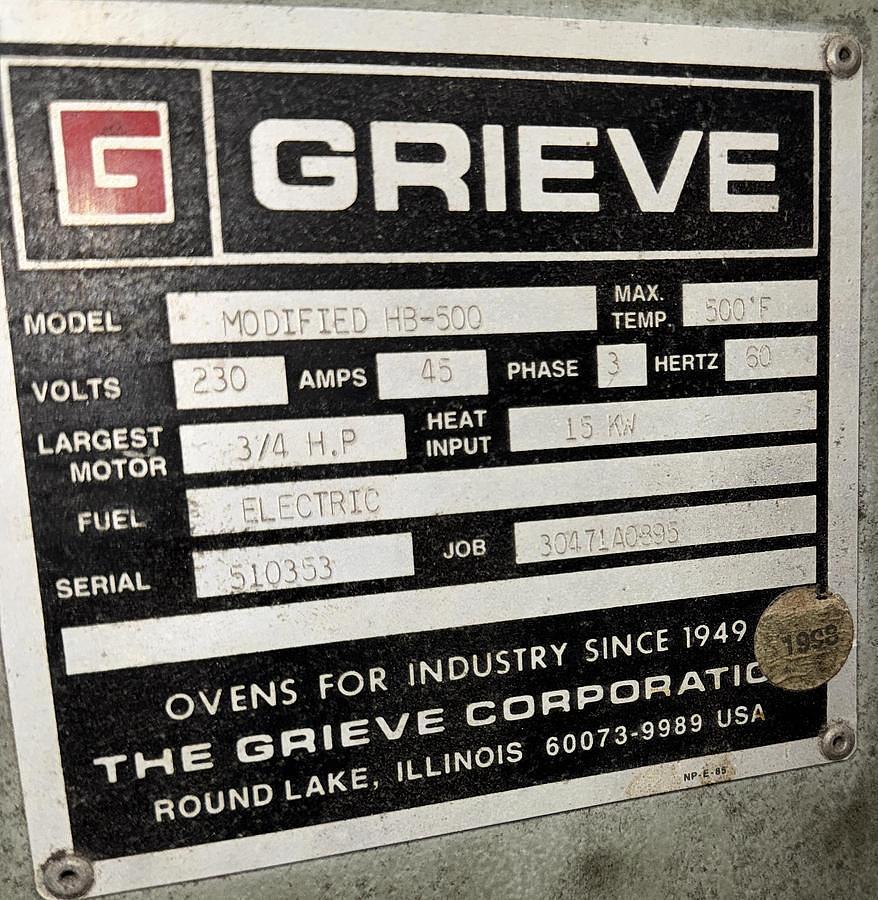

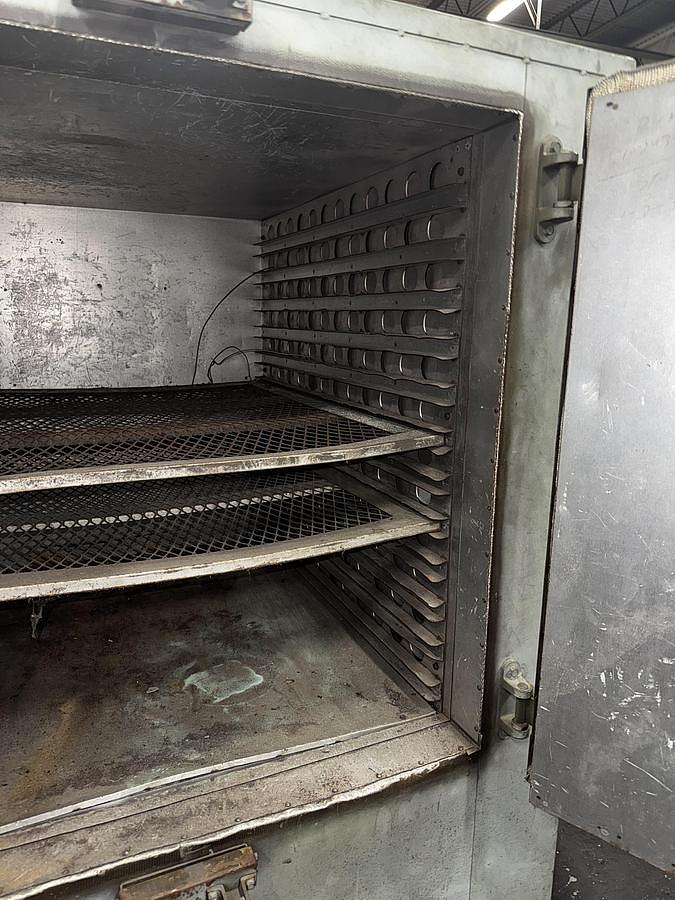

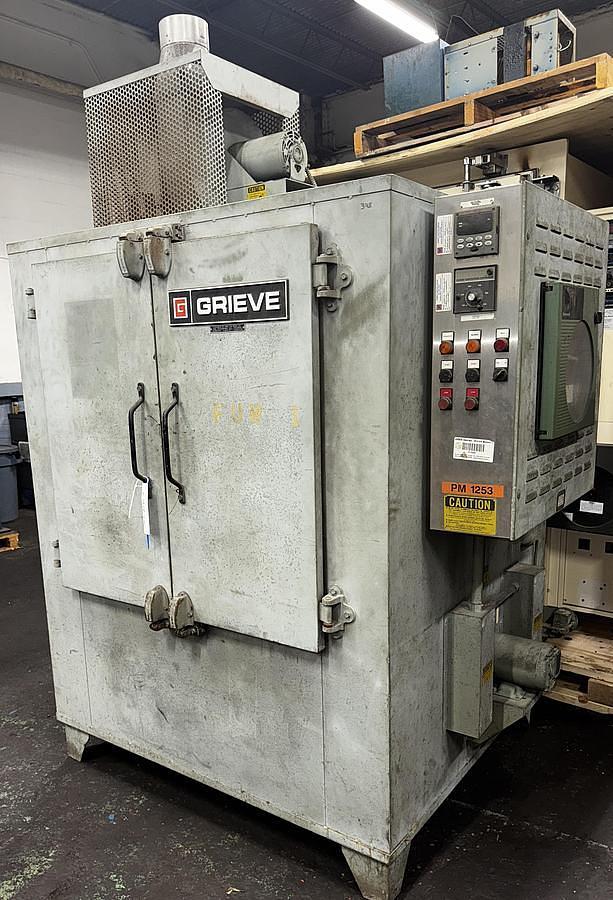

Grieve Electric Heat Treat Furnace, Model Modified HB-500, S/N 510353, Work Area 38"W X 38"H X 40"L, 230V/3/60, 45 Amps, 15 Kw, Overall Size 67"W X 91"H X 52"L, Double doors with Brixon spring tension latches and ceramic fiber tadpole style gasket for a good door seal. Aluminized steel interior with 13 shelf brackets on 4" centers, 2 shelves are supplied with this oven. Heating elements and 3/4 HP direct drive circulating are located in a plenum under the work area. Fresh air inlet is located on the left-hand side. Powered Exhauster is located on top of the oven. Heated air is circulated in a horizontal airflow pattern through the chamber for good uniform heating. Oven will be tested prior to shipping.

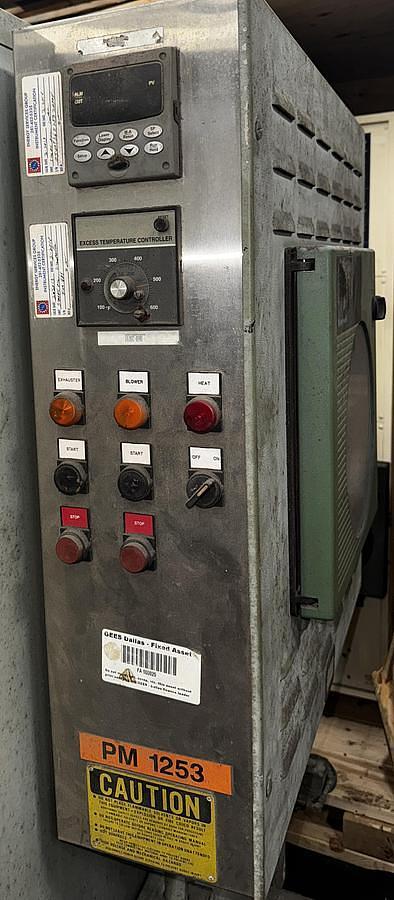

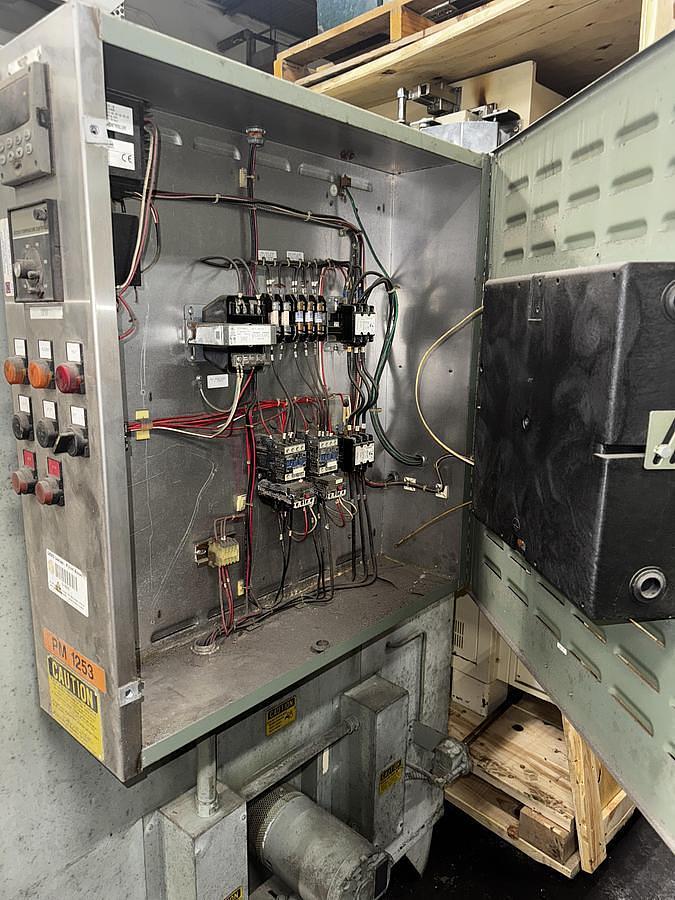

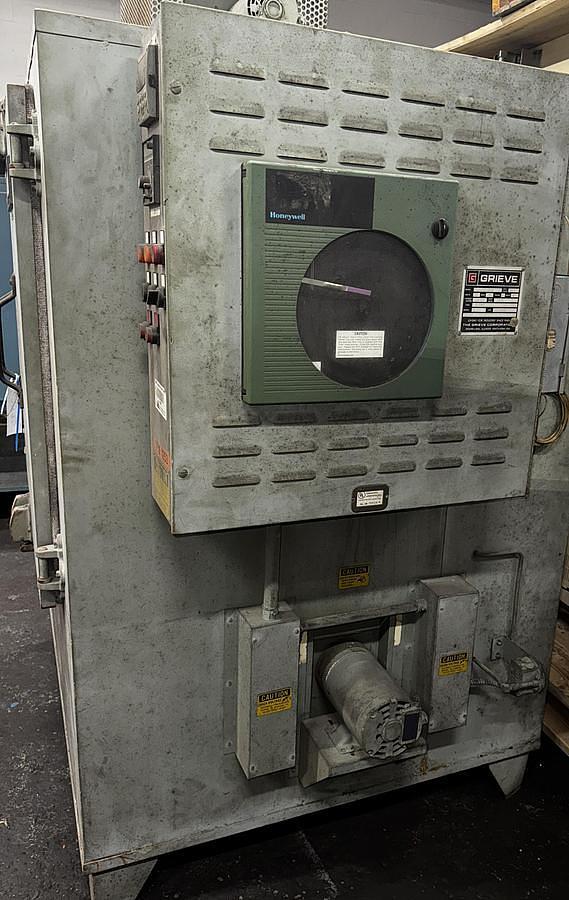

Controls are located in a "UL" rated enclosure attached to the right hand side of the oven. Honeywell UDC 2500 digital temperature controller, Honeywell DR4300 digital circular chart recorder, United Electric analog high limit with control switches/ indicating lights and E-Stop button are flush mounted to the face of enclosure. Control and high limit contactors, motor starter, fuses, relays, etc. are mounted inside the enclosure.
