2022 TOPCAST TVC60d-XXL DUAL CHAMBER VACUUM CASTING MACHINE

Description

TVCd is the pressure over vacuum casting machine designed to meet the more severe needs in lost wax casting production.

This machine works with a double chamber concept. This system gives several advantages compared with the traditional single chamber suction systems.

In the TVCd melting chamber and flask chamber are completely independent, and at the moment of casting the machine can control the metal injection in the mould by applying a differential pressure during pouring.

This yields to a faster injection compared to simply gravity pouring with the benefit of allow casting of items at lower temperature. This will result in smaller grain sizes and better surface finishing of the cast parts.

Additionally, the ability to maximize vacuum in the mould chamber respect to the independent melting chamber gives astonishing filling down to the thinnest details, because of absence residual gas in the mould

Technical Data

Alloys

Aluminium and its alloys.

Crucible: Graphite hollowed crucible with graphite stopper rod – (Bottom Pouring Casting)

Crucible volume: 20 litres

Max Working Capacity: (alloys in grains – 60% brim-full): 32 Kg Al

Max Working Capacity: (alloys in ingots and scraps – 50% brim-full): 27 Kg Al

2 thermocouples measurement system, for Stopper and Crucible, with average function

Max continuous Temperature: 1150 °C

Max Peak Temperature: 1200°C

Max Mould (Flask) Size: D 1.000 x H 1.000 mm

Alignment sensor for correct aiming and pouring

Mould placement check before casting

Machine Performance

Melting chamber pumped down to 1 mbar within 5 minutes in clean / empty condition

Vacuum leakage detector

Overpressure: + 0.5 bar over the atmospheric pressure

Induction Generator: Power: 60 kW, Frequency: 4-8 kHz

Inert Gas: The machine can be used with Argon or Nitrogen

Main Connections: Electrical: Three-phases 400 V / 50 Hz

Compressed Air: 5 - 8 bar

Argon/Nitrogen: 2.5 bar

Cooling Water 3 bar - 30 l/min – temp (18-28°C)

Special Functions Included in the standard machine

Auto-Test: Automatic Vacuum Sealing Test for O-rings, gaskets and filters

Connections: RS232 and Ethernet connections to factory networks

Remote Diagnostic: Possibility to connect to an on-line service for maintenance via internet

Investment Vacuum Mixer

MESC/C100 Vacuum Investment Mixer

The equipment is used to mix, under vacuum, investment powder and water.

Mains features:

Dispenser for automatic investment powder loading

Investment degasification

Mixer speed regulation

Mixing time programmable

Exact calculation water / powder thanks to a digital balance

Flask vibration

Technical Data

Capacity 100 kg

Max Flask Size n.1, D 1.000 x H 1.000 mm

Electrical Main: 400 V, 50Hz Three Phases

Vacuum pump: 100 m3/hour

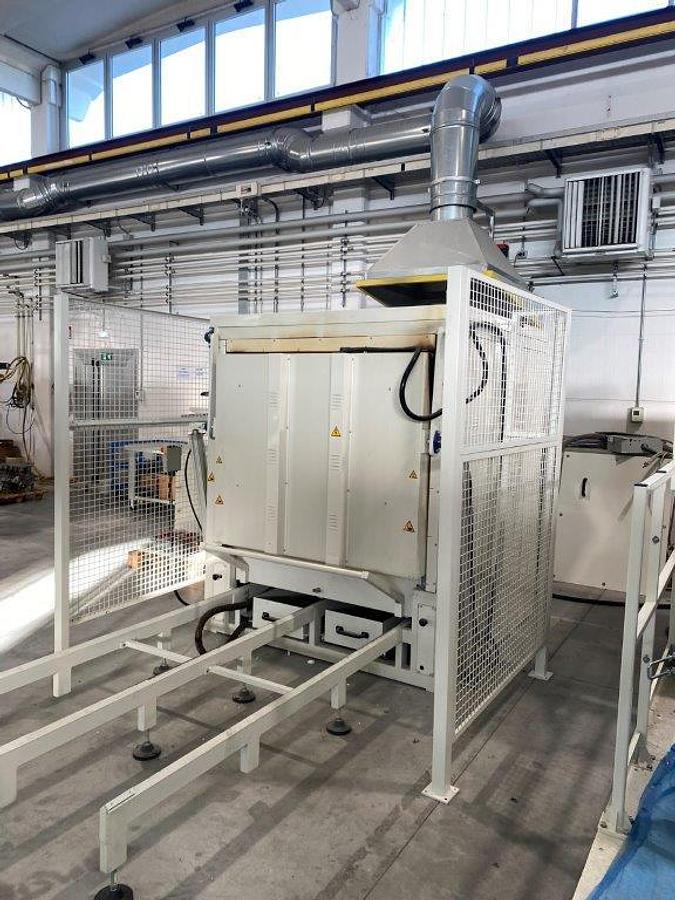

Burnout Oven With Dewaxer

FCC-TE32c Burnout Ovens with De-waxer

Technical Characteristics Model

Muffle Internal Dimensions 1340 x 1340 x 950 mm

Power Max Working capacity 32 kW

Max Temp 1.080°C

FCC-TE32c
