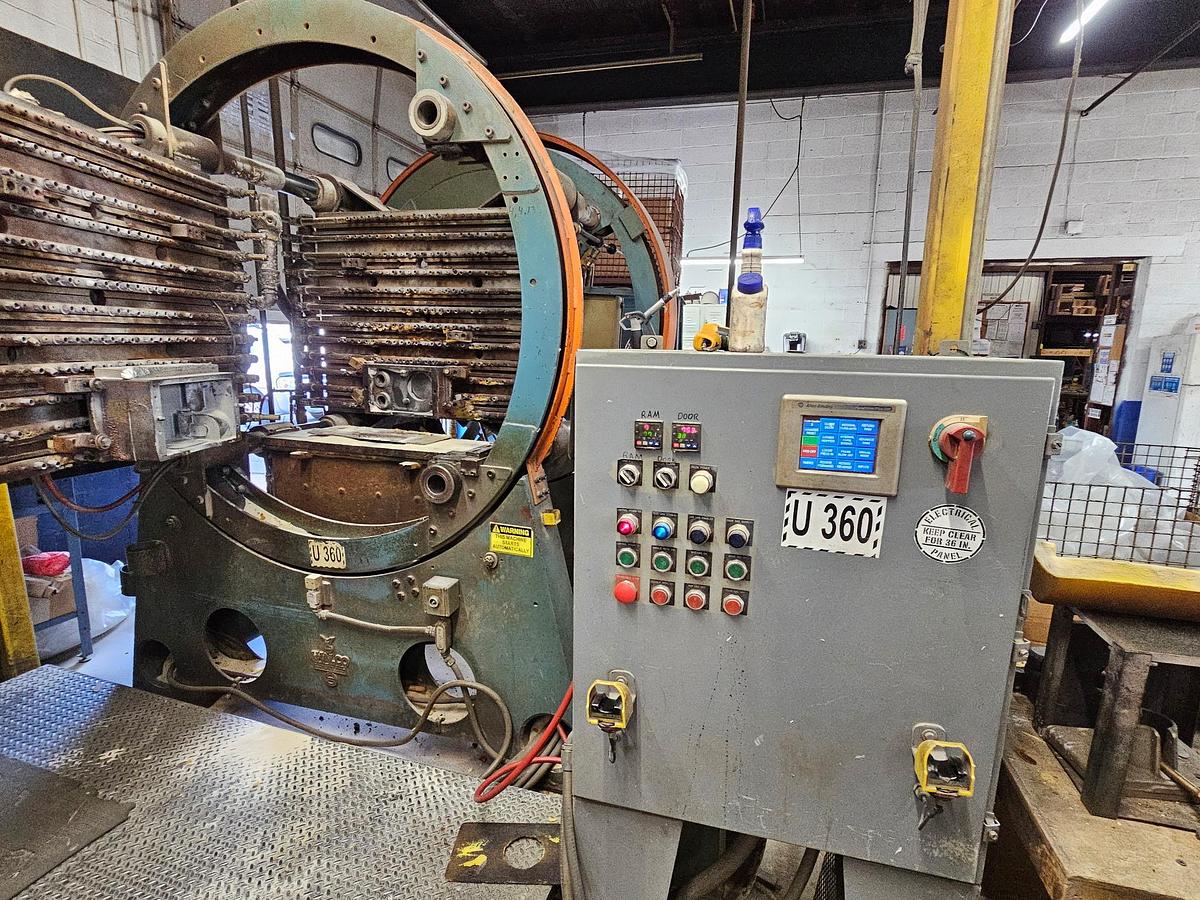

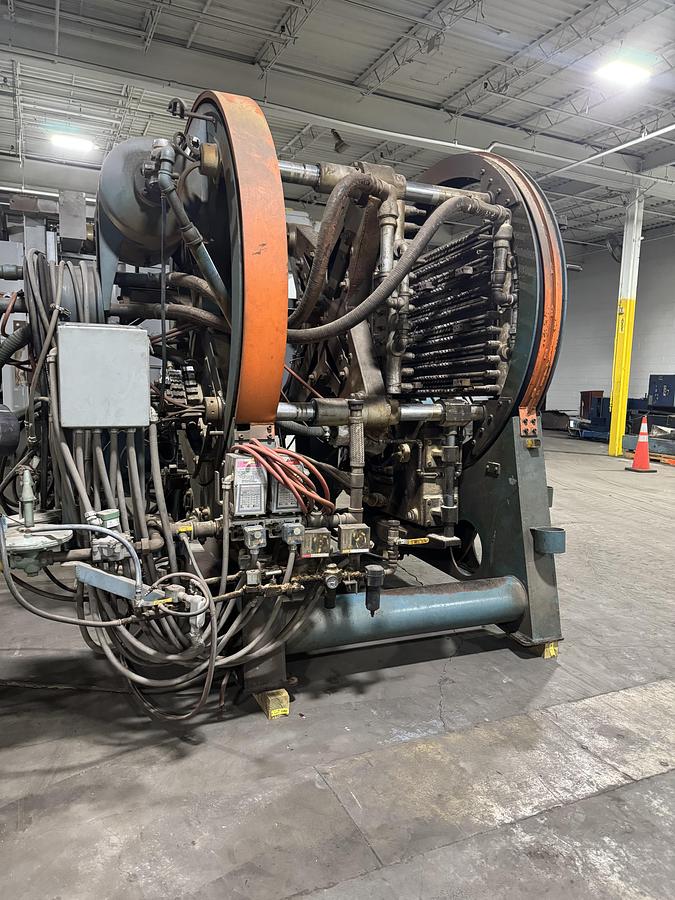

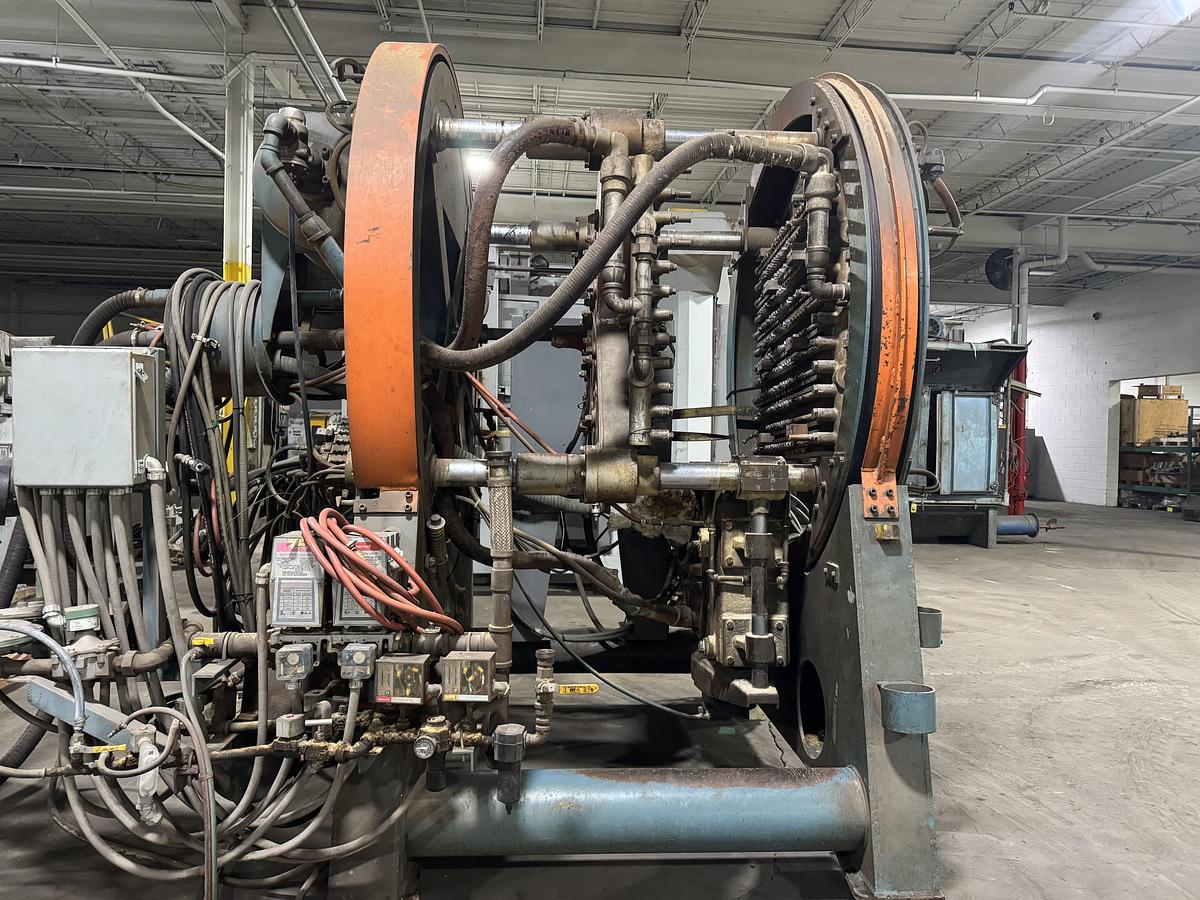

Name: SHALCO U360 SHELL CORE MACHINE
Brand: SHALCO
SKU: SCB510
Availability: InStock

Featured

Shalco U360 Shell Core Machine, PLC Control, Dual Gas, Hydraulic pump, Sand Feed Hopper, Manuals, Recently Serviced, and in Good Running Condition.

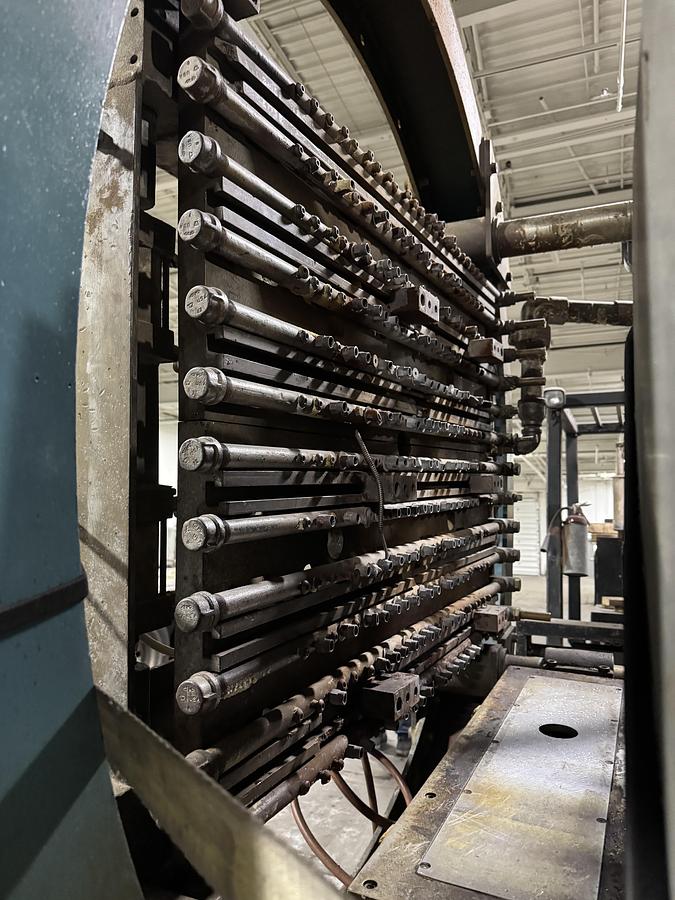

36” High x 44” Wide gas fired heater plates.
Core Box Weight Max.: on ram plate 2,500 lbs. / on door plate 2,000 lbs.
Core Box Depth 18” max / 8” min

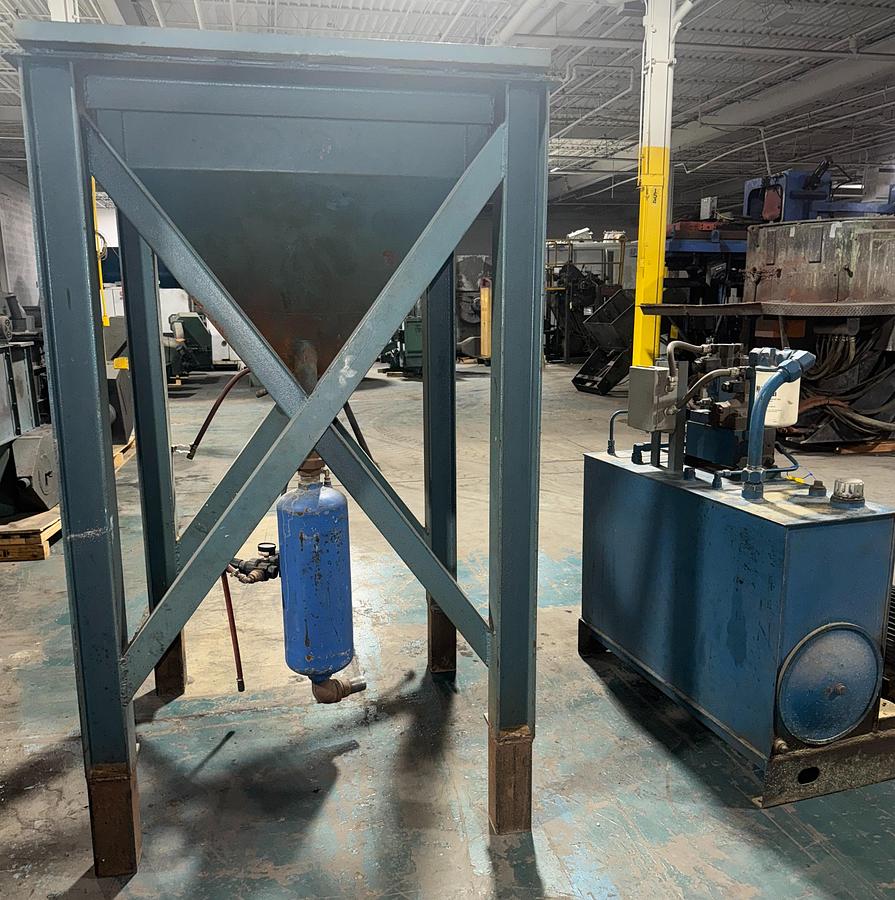

Sand Magazine Capacity 370 lbs.
Sand Magazine Blow Area: Standard 8” x 321⁄8” / Water Cooled Blow Plate 6 3⁄8” x 301⁄2”
Air Pressure: Minimum 80 psi; Consumption 8 SCF/Cycle 360 SCFH Peak Demand
Natural Gas @ 1,000 BTU/CU FT.); Pressure @ machine 8 oz./sq.in. (.034 atmosphere) Max. consumption 1,000 CFH; Average Consumption 676CFH
Max Power Required 12.3 KW;
Net Weight: 10,000 lbs.

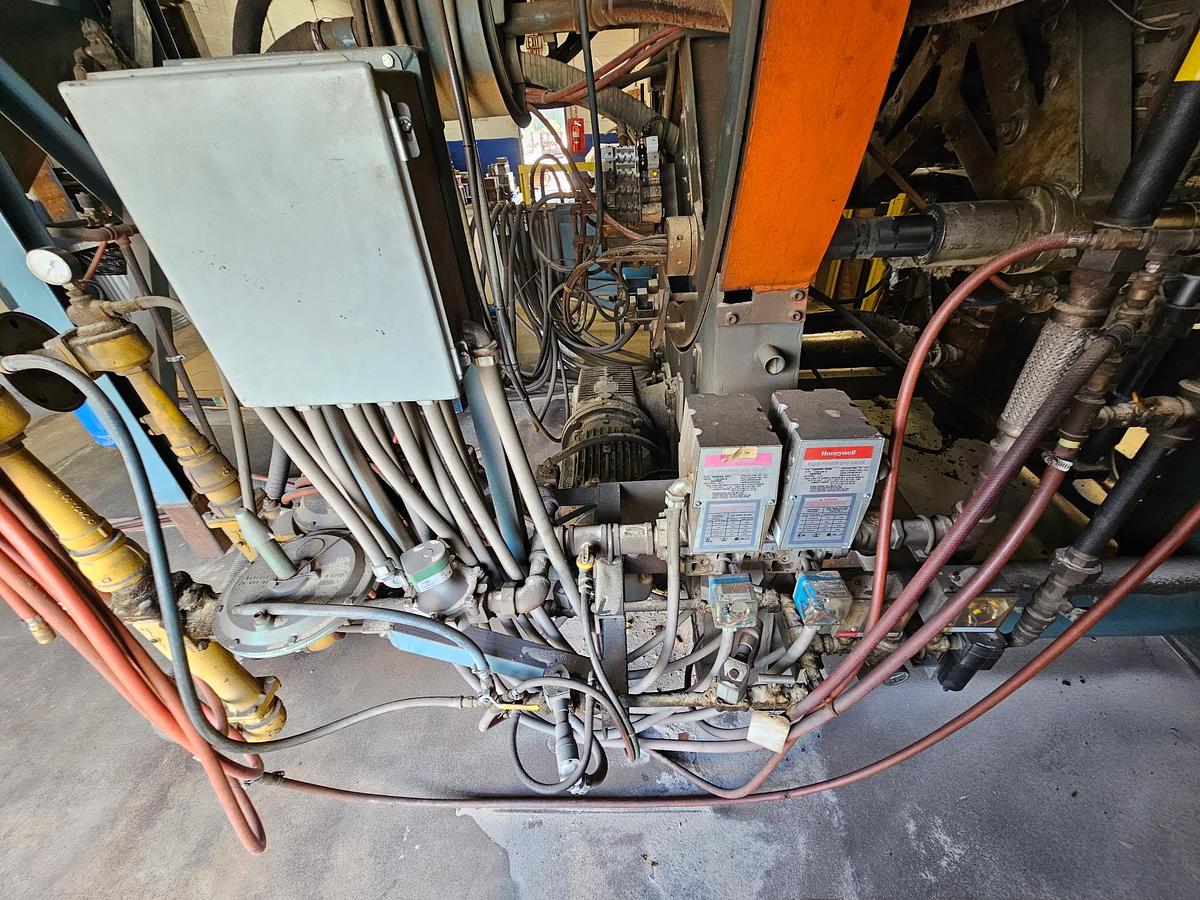

Dual Gas Combustion system.
Standard wood blow plate and metal frame.

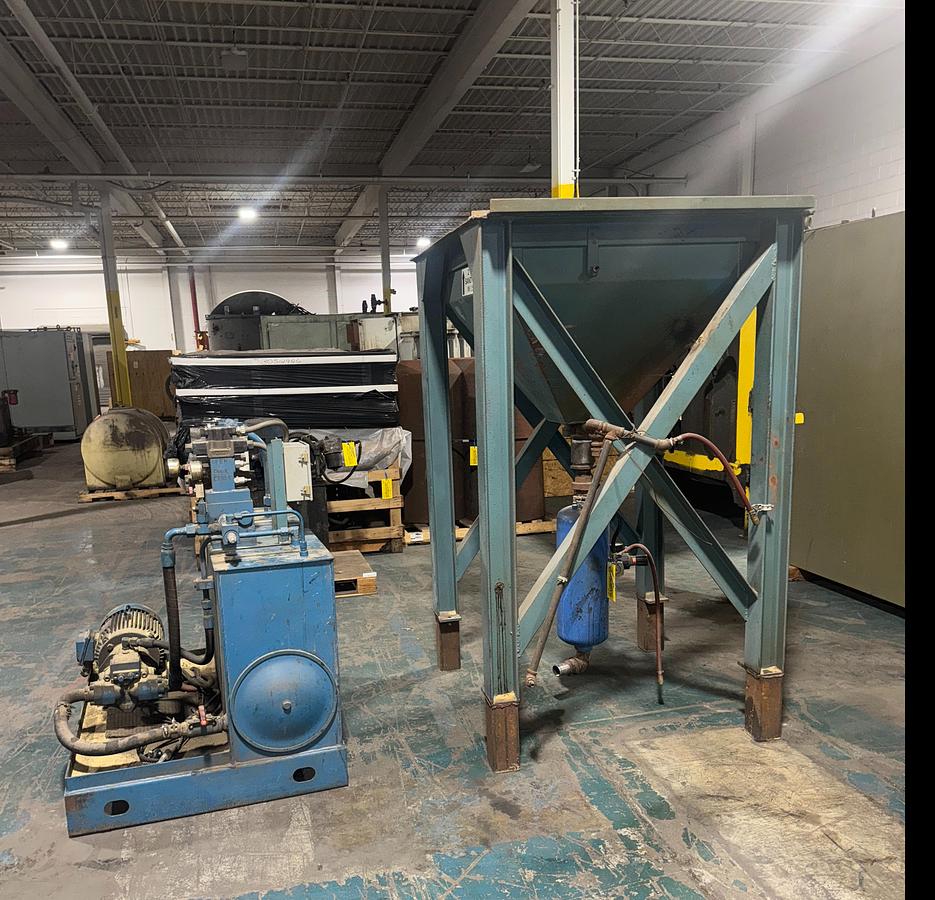

Hydraulically operated ram cylinder and hydraulic power unit.
